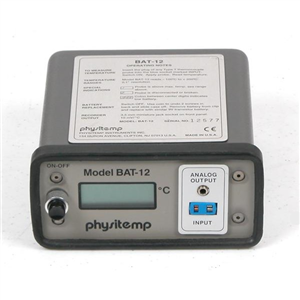

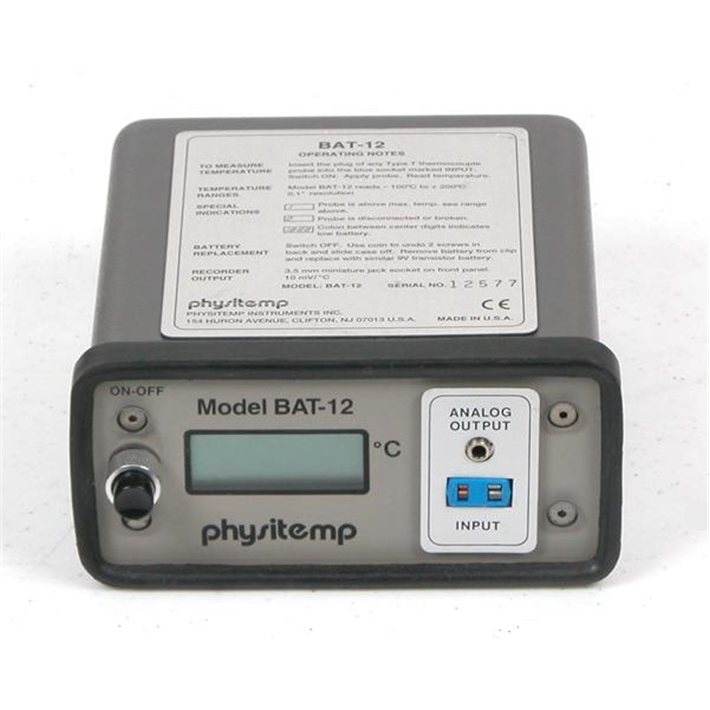

BAT-12R-220
Single Input Type T Thermocouple Thermometer, rechargeable NiCad battery and 220 VAC adapter (order probe separately)
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
- Accuracy & resolution 0.1°C
- Fast response
- Analogue output signal
- Durable, sealed construction
- Heavy duty carrying case for field use
Thermocouple compatibility
The thermometers can be used with any “Type T” thermocouple.
Description
Single Input Type T Thermocouple Thermometer, rechargeable NiCad batteries and 220 VAC adapter (microprobe ordered separately). It has an analogue output for recording of temperature data (10 mV per °C, approx)
The BAT-12R has 0.1°C resolution and super accuracy of 0.1°C ±1 digit between 0-50°C and 0.1% ± 1 digit over full range of -100 to 200°C. The BAT-12R provides fast readings, usually within 2-5 seconds depending on the temperature probe in use.

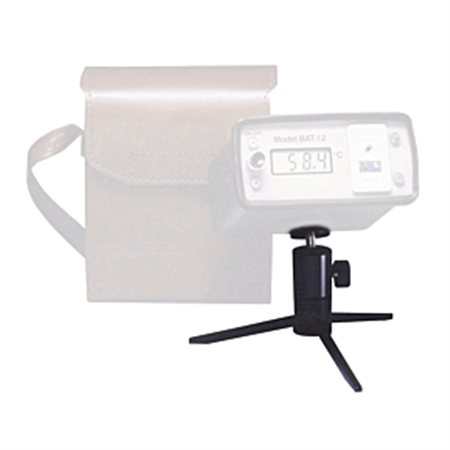

BAT-12R This thermometer has a sealed construction making it water, dust and fume resistant. It can be used not only in the lab and filed but also in industrial environments as well. The BAT-12R is supplied with a heavy-duty camera style carrying case for portable field use or can be used in the lab with our optional tabletop stand 501608.
Specifications
Specifications
| Temperature Range | -100° to +200°C |
| Resolution | |
| Accuracy | 0.1°C ± 1 digit between 0-50°C, 0.1% ± digit over full range |
| Ambient Operating Range | 15-45°C |
| Calibration Conformity | Conforms to NIST tables - (monograph 175) |
| Sensors | Type T Thermocouple |
Power
| Batteries | Ni-Cad battery |
| Power Supply | 220VAC with charger* |
| Dimensions | 5''W x 2.5''H x 6''D (13 x 6.4 x 15 cm) |
| Weight | 0.9 Kg (including carrying case) |
* With Ni-Cad batteries installed, the unit may be continuously operated from the AC recharger
Input/Output
| Inputs | 1 |
| Input Socket | Type T |
| Analog Output | 10mV per degree C, Approx. |
| Readout | 3.5 digit, 0.5'' LCD |
