BAT-12

BAT-12

Single Input Type T Thermocouple Thermometer, battery powered (order probe separately)



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

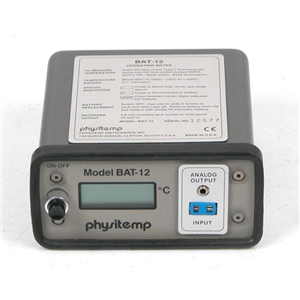

BAT-12R Single Input Type T Thermocouple Thermometer

There are 1 images available to view - click to enlarge and scroll through the product gallery.

  • Accuracy & resolution 0.1°C
  • Fast response
  • Analogue output signal
  • Battery operated, providing over one hundred hours of continuous use
  • Durable, sealed construction
  • Heavy duty carrying case for field use

Thermocouple compatibility

The thermometers can be used with any “Type T” thermocouple.

Description

Single Input Type T Thermocouple Thermometer, battery powered (microprobe ordered separately). It has an analogue output for recording of temperature data (10 mV per °C, approx)

The BAT-12 has 0.1°C resolution and super accuracy of 0.1°C ±1 digit between 0-50°C and 0.1% ± 1 digit over full range of -100 to 200°C. The BAT-12 provides fast readings, usually within 2-5 seconds depending on the temperature probe in use.

BAT-12 This thermometer has a sealed construction making it water, dust and fume resistant. It can be used not only in the lab and filed but also in industrial environments as well. The BAT-12 is supplied with a heavy-duty camera style carrying case for portable field use or can be used in the lab with our optional tabletop stand 501608.

Specifications

Specifications

Temperature Range -100° to +200°C
Resolution
Accuracy 0.1°C ± 1 digit between 0-50°C, 0.1% ± digit over full range
Ambient Operating Range 15-45°C
Calibration Conformity Conforms to NIST tables - (monograph 175)
Sensors Type T Thermocouple



Power

Batteries 9V battery
Power Supply Battery powered
Dimensions 5''W x 2.5''H x 6''D (13 x 6.4 x 15 cm)
Weight 0.9 Kg (including carrying case)



Input/Output

Inputs 1
Input Socket Type T
Analog Output 10mV per degree C, Approx.
Readout 3.5 digit, 0.5'' LCD



Accessories


Choose Quantity
501608

501608

Tripod Stand for BAT-12

View details...
