II-PE34
Incremental Hot Cold Plate for Mouse & Rat- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.

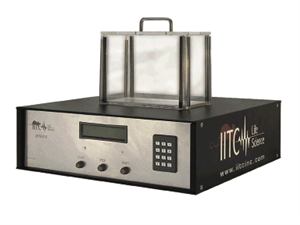

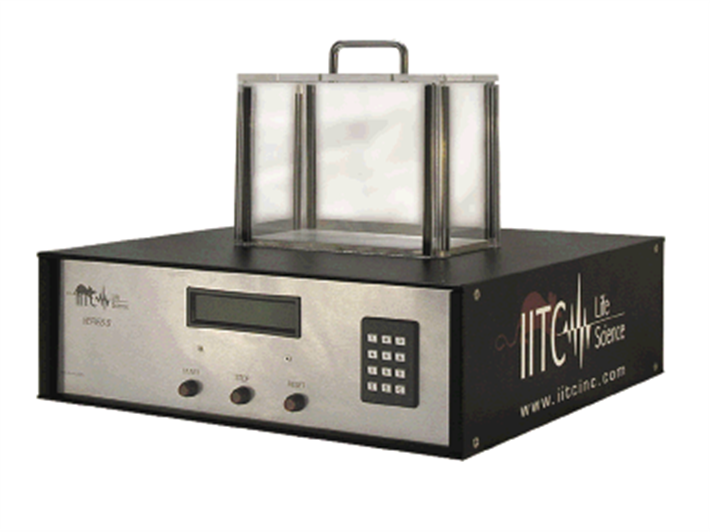

This safe, humane device for rats and mice is used for latency and threshold-based nocicetption, ramping temperatures for 0-70°C. Because this hot cold plate is incremental, it measures latencies of much more than just the strong narcotic agents, broadening dramatically the range of analgesia research with devices of this type. Microprocessor-controlled, the Incremental Hot Cold Plate can heat or cool in increments of 0.1°C, at a rate of 1-10°C per minute. With uniform heating and cooling and upper/lower cut-off limits, this device is predictable and safe. It can also function as a constant temperature plate with great stability (0.1°C). As soon as a reaction is observed from the chosen paw, the unit reverses to the standby temperature. This unit features:
- Heat or cool, from 0-70°C
- Ramping temperatures for threshold and latency results
- Rapid increase or decrease in temperature
- Precise programmable digital control
- Printout of data
- Temperature stability is 0.1°C
- Includes clear animal enclosure
- Plate size 4 x 8”
- Two-year warranty
