Microfluidic Pumps & Biochips

Microfluidic Pumps & Biochips

Microfluidic pumping solutions


WPI offers precision microfluidic pumps for a wide range of applications in biotech, pharma, life sciences and more, for transporting liquids in microlitre or nanolitre ranges. Pressure driven and syringe varieties.

Microfluidic Pumps

Microfluidic Syringe Pumps

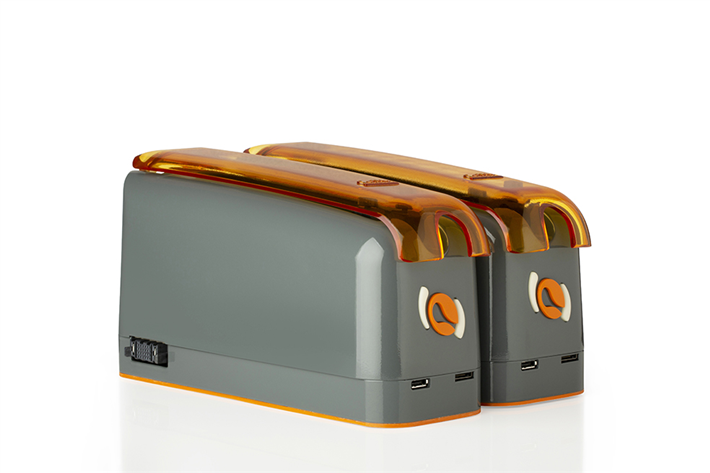

ExiGo Pump series is a microfluidic syringe pump controlled by SmartFlo software that can be run from a PC. Up to 4 ExiGo pumps can be plugged together with independent programming of each pump's flow profile.

  • Flow rate 10 nL/min to 13 mL/min
  • Standard syringes from 100 µL to 5 mL - use the automatic refill with ExiGo Manifold accessory
  • Programmable flow profiles with any combination of constant, ramp, sine and step
  • Fast switching - response times as low as 50 ms

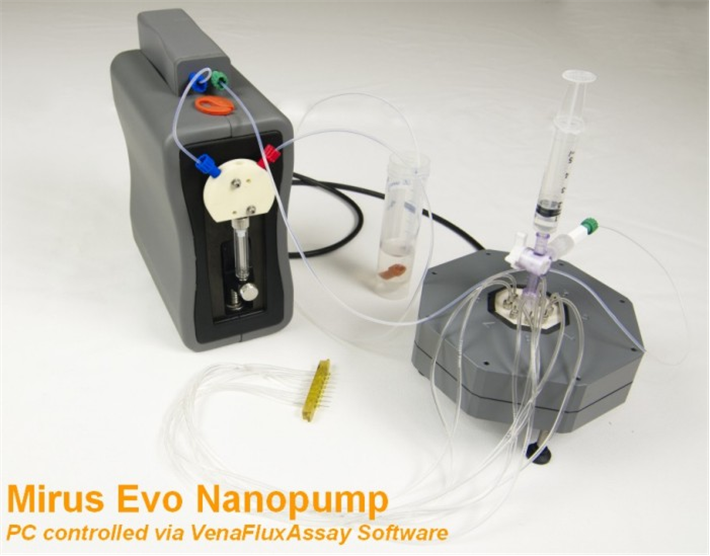

Mirus Evo Pump is an 8-channel pulse-free microfluidic syringe pump. Syringe pump comes with the MultiFlow8 providing equal flow rates in each of the 8 channels.

  • Flow rate: 100 nL/min - 10 mL/min
  • Standard syringes: 100 µL, 250 µL, 500 µL, 1 mL, 5 mL glass syringes
  • Programmable with PC-controlled VenaFluxAssay software



Microfluidic Pressure Pumps

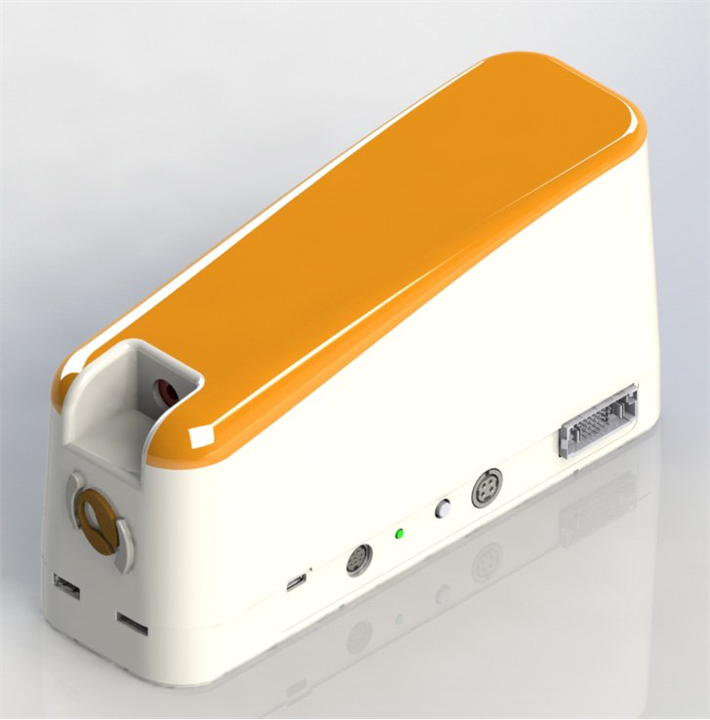

UniGo Pump series is a microfluidic pressure pump controlled by SmartFlo software that can be run from a PC. Connect up to 4 UniGo pumps together with independent programming of each pump's flow profile.

  • Flow rate 1 nL/min to 1 mL/min
  • Programmable flow profiles with any combination of constant, ramp, sine and step
  • Input pressure up to 10 bar (145 psi) via external compressor or vacuum pump required
  • Closed loop feedback - flow sensors provide active feedback and precise flow control

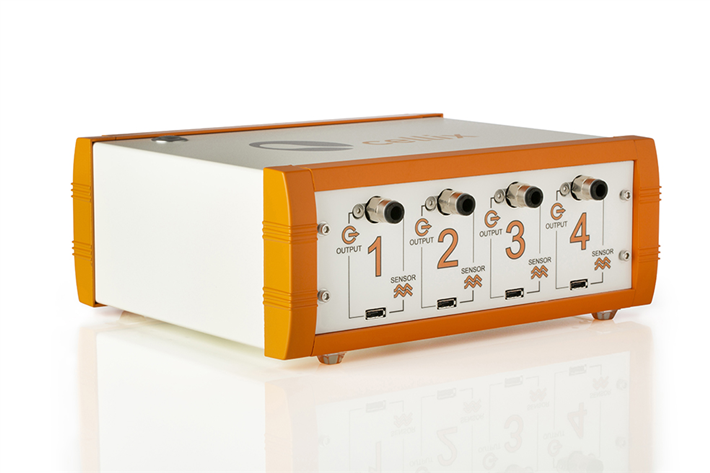

4U Pump series is a four channel pulse free microfluidic pressure pump controlled by SmartFlo software that can be run from a PC.

  • Flow rate: 1 µL/min - 1 mL/min
  • Programmable with PC-controlled VenaFluxAssay software
  • Input pressure up to 10 bar (145 psi) via external compressor or vacuum pump required
  • Closed loop feedback - flow sensors provide active feedback and precise flow control



Microfluidic Recirculating Pumps

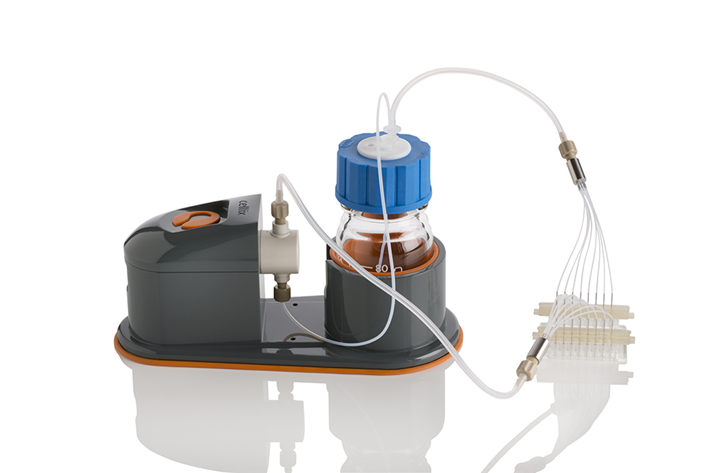

Kima pump is a microfluidic recirculating pump designed to aid cell culture (e.g. endothelial cells) under physiological conditions (shear flow) in various biochips and flow chambers.

The Kima pump when used with the Vena8 Endothelial+ biochip offers 8 parallel microchannels and with additional Kima pumps the Kima controller can control and run up to 32 microchannels.

  • Flow rate ~250 µL/min to 600 µL/min.  If using Kima pump with Vena8 biochip range, the flow splitter will result in flow rates of ~30 - 75µL/min in each of the 8 channels of the biochip
  • Recirculating culture media saves reagents and no additional fluidic valves required
  • Incubator safe
  • Easy to use - control up to 4 pumps with same controller and iPod Touch






Biochips

Biochips

WPI offers Cellix Biochips for a wide range of applications across the life sciences...

View all...

ExiGo Microfluidic Syringe Pump

ExiGo Microfluidic Syringe Pump

ExiGo Pump series is a microfluidic syringe pump controlled by SmartFlo software tha...

View all...

UniGo Pulse-Free Microfluidic Pressure Pump

UniGo Pulse-Free Microfluidic Pressure Pump

UniGo Pump series is a microfluidic pressure pump controlled by SmartFlo software th...

View all...

4U Four Channel Microfluidic Pressure Pump

4U Four Channel Microfluidic Pressure Pump

4U Pump series is a four channel microfluidic pressure pump controlled by SmartFlo s...

View all...

Kima Pump

Kima Pump

Kima pump is a microfluidic recirculating pump designed to aid cell culture (e.g. en...

View all...

DGKit-1.0

DGKit-1.0

Droplet Generation Kit

Includes: 2 x ExiGo pumps with PC LabVIEW control softw...

View details...

MIRUS-EVO-PRO

MIRUS-EVO-PRO

The Mirus™ Evo Nanopump is a microfluidic syringe pump PC controlled via VenaFluxAssay ...

View details...
