SPLG130

SPLG130

Legato130 SYRINGE PUMP

Single syringe, programmable touch screen, infudion/withdrawal pump



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

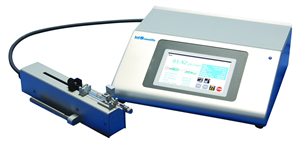

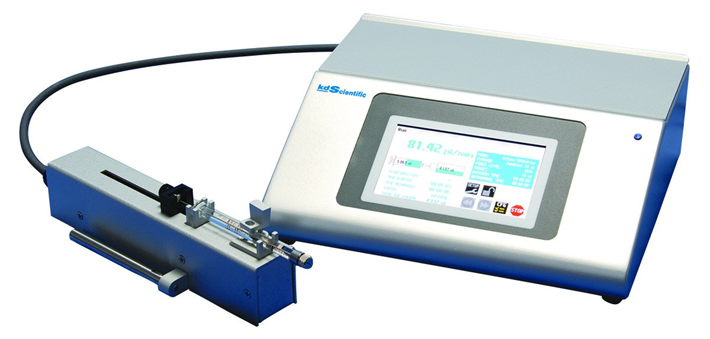

Legato130 Legato130

There are 2 images available to view - click to enlarge and scroll through the product gallery.

Single syringe infuse/withdraw with program option for 2 programs. 50 steps each. Holds one syringes from 0.5 µl to 1000 µl. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features

  • Holds one syringe from 0.5 µl to 1000 µl
  • High resolution color touch screen
  • Unparalleled ease of use
  • Touch pad "lock" feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 11 lb linear force
  • Advanced microstepping techniques
  • Built in RS485 interface
  • USB port
  • I/O & TTL interface
  • Continuous mode of operation
  • Spill dam

Specifications



Accuracy
  • ±0.5%
Syringes (Min/Max)
  • 0.5 µl to 1000 µl
Flow Rate
  • Minimum (0.5 µl syringe): 3.66 pl/min
  • Maximum (1000 µl syringe): 3.818 ml/min
Display
  • 4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory
  • Stores all Settings
Connectors
  • RS485 - IEEE-1394 6 pos
  • USB - Type B
  • I/O & TTL - 15 pin D-Sub Connector
  • Footswitch - mini phono jack
Linear Force (Max)
  • 5 kg (11 lb) @ 100% Force Selection
Drive Motor
  • 1.8° Stepper Motor
Motor Drive Control
  • Microprocessor with 1/16 microstepping
Number of Microsteps
per one rev.of Lead Screw
  • 3,200
Step Rate - Minimum
  • 27.5 sec/µstep
Step Rate - Maximum
  • 52 usec/µstep
Pusher Travel Rate - Minimum
  • 0.433 µm/min
Pusher Travel Rate - Maximum
  • 228.97 mm/min
Input Power
  • 12-30 VDC
Input Power Connection
  • 2.5 mm ID x 5.5 mm OD male plug
Power
  • 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions
  • 22.6 x 17.78 x 9.32 cm (9 x 7 x 3.67 in)
Weight
  • 1.96 kg (4.32 lb)
Operating Temperature
  • 4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature
  • -10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity
  • 20% to 80% RH non condensing
Mode of Operation
  • Continuous
Classification
  • Class 1
Pollution Degree
  • 1
Installation Category
  • 11
Regulatory Certification
  • CE, EU RoHS
