SPLG101

SPLG101

Legato 101 Dual-Syringe Pump Infuse Only



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

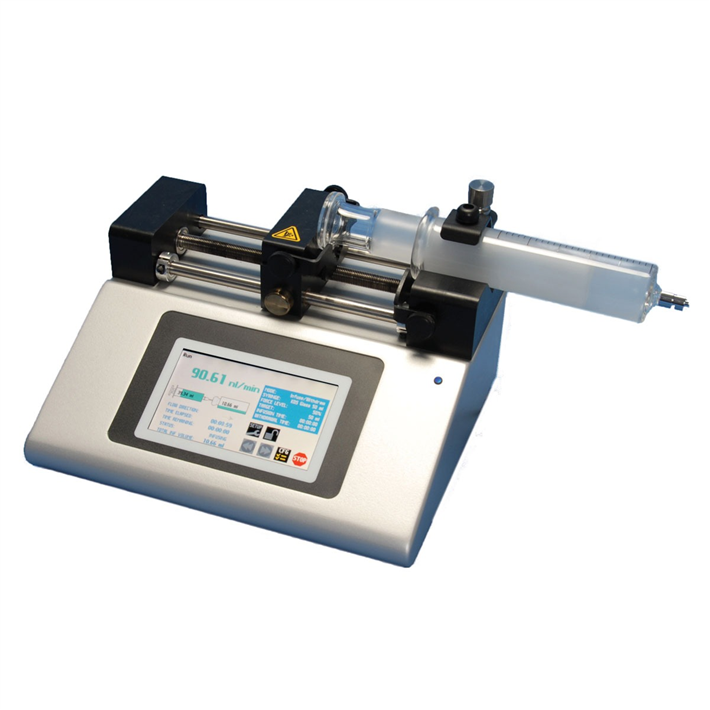

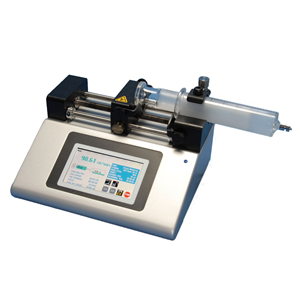

SPLG101 Dual Infuse Touchscreen Syringe Pump

There are 1 images available to view - click to enlarge and scroll through the product gallery.

  • Dual Infuse Only Syringe Pump
  • Minimum Flow Rate: 1.26pL/min (0.5 uL syringe)
  • Maximum Flow Rate: 25.99mL/min (10mL syringe)
  • 100-240V AC, 50/60Hz

The large touch screen color display lets you see all of the pump’s operating parameters to ensure proper operation during the experiments. Syringe size and flow rate are easily displayed, as well as the volume delivered and elapsed time. Set up is easy using the icon-driven software. An LED on the front panel makes it easy to see if the pump is running. Advanced micro stepping techniques are employed to further reduce the step angle to eliminate flow pulsation. Accuracy is ±0.5%. A wide dynamic flow range from picoliters per minute to milliliters per minute can be programmed into the pump. These versatile pumps can be connected through an RS485 interface.

Add the new software to maximize the use of the pump’s functions and features. Adagio allows you to configure the pump through the software, as well as operate one or multiple pumps. LabVIEW drivers are available on the National Instruments website.

The SPLG101 is ideal for applications where dual syringes are required with small volumes under 10mL. It accommodates two syringes from 0.5 µL to 10 mL. The SPLG101 has a wide flow rate range from 1.26 pL/min to 25.99 mL/min, depending on syringe size.

Benefits

  • Automatic dispensing of small volumes
  • Constant delivery of fluids
  • Hands free operation
  • Better flow performanc

Features

  • Accuracy ±0.35%
  • Holds one or two syringes from 0.5 μL to 10 mL
  • High resolution color touch screen
  • Real time clock
  • Unparalleled ease of use
  • Touch pad "lock" feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 75 lb linear force
  • Advanced microstepping techniques
  • Built in RS-485 interface to link multiple pumps
  • USB port & RS232 Interface
  • I/O & TTL interface
  • Continuous mode of operation
  • Protection with a spill dam
  • Analog control option
  • CE, UL, CSA, CB Scheme, EU RoHS

Examples of Flowrates

SyringeDiameterMinimumMaximum
0.5 µl 0.103 mm 1.260 pl/min 1.325 µl/min
1 µl 0.146 mm 2.520 pl/min 2.651 µl/min
2 µl 0.206 mm 5.1 pl/min 5.299 µl/min
5 µl 0.343 mm 14.100 pl/min 14.690 µl/min
10 µl 0.485 mm 28.260 pl/min 29.380 µl/min
25 µl 0.729 mm 63.900 pl/min 66.370 µl/min
50 µl 1.03 mm 127.600 pl/min 132.500 µl/min
100 µl 1.457 mm 255.200 pl/min 265.100 µl/min
250 µl 2.304 mm 638.300 pl/min 662.900 µl/min
500 µl 3.256 mm 1.275 nl/min 1.324 ml/min
1000 µl 4.608 mm 2.553 nl/min 2.652 ml/min
1 ml 4.699 mm 2.655 nl/min 2.757 ml/min
3 ml 8.585 mm 8.863 nl/min 9.204 ml/min
5 ml 11.989 mm 17.290 nl/min 17.950 ml/min
10 ml 14.427 mm 25.030 nl/min 25.990 ml/min

Specifications

Mode Infusion
Syringes (min./max.) 0.5μL/10mL
Power 100-240 VAC: 50/60 Hz, 50W. 0.5 A fuse
Motor Drive Control Microprocessor with 1/16 microstepping
Linear Force (Maximum) 13.6 kg (30 lb) @ 100% Force Selection
Number of Microsteps per One Revolution of Lead Screw 15,360
Step rate (Minimum) 27.5 sec/μstep
Step rate (Maximum) 26 μsec/μstep
Drive Motor 0.9 degree Stepper Motor
Pusher Travel Rate (Minimum) 0.15 μm/min
Pusher Travel Rate (Maximum) 159 mm/min
Flow Rate (Minimum) 1.26 pL/ min (0.5 μL syringe)
Flow Rate (Maximum) 25.99 mL/min (60 mL syringe)
Dimensions 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
Weight 2.66 kg (5.9 lb)
Connectors RS485 - IEEE-1394 6 pos, USB Type B

Accessories

504576

504576

Small Syringe Multi Rack for SPLG pumps

View details...

504577

504577

Large Syringe Multi Rack for SPLG pumps

View details...

504578

504578

Adagio Software/USB key. For use with the SPLG100, SPLG101, SPLG110, SPLG200, SPLG210, ...

View details...
