AL-4002X

AL-4002X

Aladdin SyringeTWO Microfluidics Programmable Syringe Pump



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

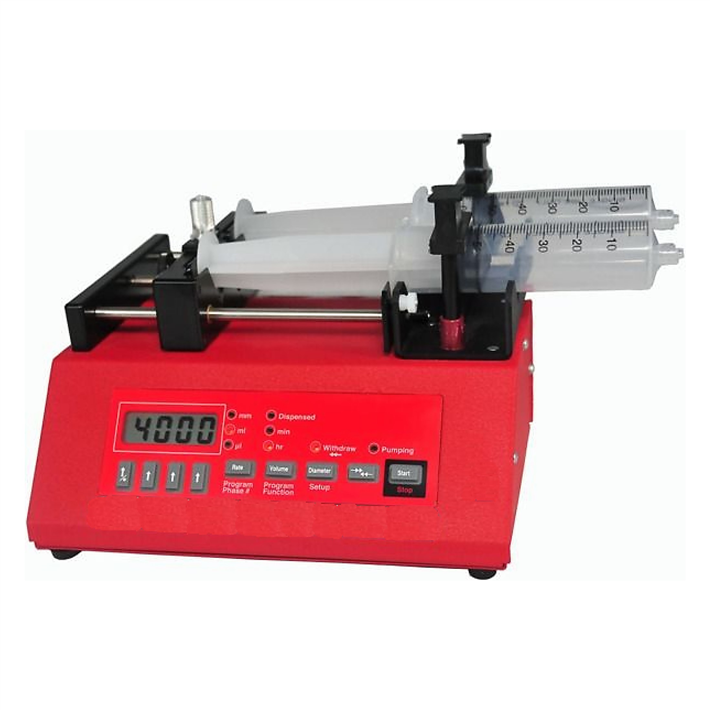

AL-4002X Microfluidic Syringe Pump

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Aladdin Instruction Manuals
/ Download as PDF



  • Very precise, with reproducible flow of ±0.2%

  • Smooth pumping at ultra low flow rates - advance per step: 4.252232 Nanometers

  • Advanced smooth linerar/gradient pumping functions

  • Selectable infusion/withdrawal rate units (mL/hr, µL/hr, mL/min, µL/min)

  • Infusion rate can be changed while pumping

  • Program pump via keypad or from a computer

  • Highly controllable – program sequences without a computer (holds up to 41 programming phases)

  • Network, control, and monitor up to 100 pumps with one computer

  • Hands-free operation with optional foot switch ADPT2

  • Motor stall detection

Channels 2
Type Infusion / Withdrawal
Flow Range 0.008 nL/hr (0.5 µL syringe) to 2545 µL/min (140 mL syringe)
Dispensing Accuracy ±0.5%
Syringe Sizes Accepted 0.5 µL to 60 mL or 140 mL partially filled
Linear Force 150 lb at low speed; 18 lb at maximum speed



To meet the demands of a busy lab Aladdin Pumps offer exceptional value providing versatility and reliability for accurately dispensing media down into the nanoliter range.

The Aladdin AL-4002X is a programmable two channel infusion / withdrawal syringe pump for applications demanding smooth, highly reproducable nano and pico liter flow rates. It's metal casing provides stability, ensuring less vibration is transferred to the syringes. Setup is easy using the pumps keypad or via a computer with optional PC to pump cable (GN-PC7 or GN-PC25).

The Aladdin AL-4002X can run complex programs with up to 41 pumping phases can be set to change pumping rates; set dispensing volumes; insert pauses; control and respond to external signals; sound the buzzer. It includes Linear/Gradient programs enabling the setting of the start pumping rate, end pumping rate and the time.

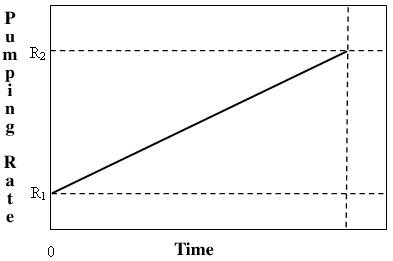

Linear/Gradient Aladdin Pump Function

Example flow rates

Syringe Size Maximum Rate Minimum Rate
0.5 µL 18.70 nL/min 0.008 nL/hr
1 µL 37.57 nL/min 0.015 nL/hr
2 µL 74.81 nL/min 0.029 nL/hr
5 µL 187.3 nL/minr 0.071 nL/hr
10 mL 445.6 µL/min 167 nL/hr
20 mL 708.7 µL/min 265.5 nL/hr
30 mL 924.5 µL/min 346.4 nL/hr
60 mL 1503 µL/min 563.2 nL/hr



Dual pumping action

Need a pump for two syringes? Two Aladdin pumps when daisy-chained are more efficient and affordable than any competitor's dual syringe models. Two Aladdins (AL-4000) will perform as a dual infusion/withdrawal pump, a double pump for infusing at different rates, a push/pull pump with one infusing and one withdrawing at the same or different rates, two independent pumps, or a master/slave pump. One Aladdin can even control the second for continuous pumping with optional check valve set. The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo, and Air-Tite.

Specifications

SYRINGE SIZES up to 60 mL (or 140 mL partially filled)
NUMBER OF SYRINGES 2
MOTOR TYPE Step Motor
STEPS PER REVOLUTIONS 400
STEPPING (max. min.) 4.25223214 nm to 34.0178571 nm depending on motor speed
MOTOR TO DRIVE SCREW RATIO 15/28
SPEED(max./min.) 8.40896E-05 cm/hr / 0.224469144 cm/min
PUMPING RATES 1699 mL/hr with 60mL syringe, to 0.73µL/hr with 1mL syringe
MAXIMUM FORCE 150 lb at min. speed, 18 lb at max. speed
NUMBER OF PROGRAM PHASES 41
RS-232 PUMP NETWORK 100 pumps maximum
POWER SUPPLY Wall adapter 12V DC @ 1000mA
DIMENSIONS 22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.)
WEIGHT 1.7 kg (3.8 lb)




Accessories


Choose Quantity
GN-NET7

GN-NET7

Pump-to-pump Network Cable, 7 ft for Aladdin series pumps

View details...


Choose Quantity
GN-NET25

GN-NET25

Pump-to-pump Network Cable, 25 ft for Aladdin series pumps

View details...


Choose Quantity
GN-PC25

GN-PC25

PC to pump cable, 25 ft for Aladdin series pumps

View details...


Choose Quantity
ADPT2

ADPT2

Footswitch for Aladdin programmable syringe pumps

View details...


Choose Quantity
GN-PC7

GN-PC7

PC to pump cable, 7 ft for Aladdin series pumps

View details...

Citations

Birngruber, T., & Ghosh, A. (2013). Cerebral open flow microperfusion: A new in vivo technique for continuous measurement of substance transport across the intact blood–brain barrier. Clinical and  …. Retrieved from https://onlinelibrary.wiley.com/doi/10.1111/1440-1681.12174/full

Ferreira, D., Reis, R., & Azevedo, H. (2013). Peptide-based microcapsules obtained by self-assembly and microfluidics as controlled environments for cell culture. Soft Matter. Retrieved from https://pubs.rsc.org/EN/content/articlehtml/2013/sm/c3sm51189h

Herricks, T., Avril, M., Janes, J., Smith, J., & Rathod, P. (2013). Clonal Variants of Plasmodium falciparum Exhibit a Narrow Range of Rolling Velocities to Host Receptor CD36 under Dynamic Flow Conditions. Eukaryotic cell. Retrieved from https://ec.asm.org/content/12/11/1490.short

Maya, H., Vincent, M., & Nötzli, S. (2013). Increased porosity of electrospun hybrid scaffolds improved bladder tissue regeneration. …  Research Part A. Retrieved from https://onlinelibrary.wiley.com/doi/10.1002/jbm.a.34889/full

Tõnurist, K., Thomberg, T., & Jänes, A. (2013). Polymorphic Behavior and Morphology of Electrospun Poly (Vinylidene Fluoride) Separator Materials for Non-Aqueous Electrolyte Based Electric Double Layer. ECS  …. Retrieved from https://ecst.ecsdl.org/content/50/45/49.short

Tõnurist, K., Thomberg, T., Jänes, A., & Lust, E. (2013). Specific Performance of Electrical Double–Layer Capacitors Based on Different Separator Materials and Non–Aqueous Electrolytes. ECS Transactions. Retrieved from https://ecst.ecsdl.org/content/50/43/181.short

Zander, N., & Orlicki, J. (2013). Electrospun polycaprolactone scaffolds with tailored porosity using two approaches for enhanced cellular infiltration. Journal of Materials  …. Retrieved from https://link.springer.com/article/10.1007/s10856-012-4771-7

Zhang, J., Jiang, D., & Peng, H. (2014). A pressurized filtration technique for fabricating carbon nanotube buckypaper: Structure, mechanical and conductive properties. Microporous and Mesoporous Materials. Retrieved from https://www.sciencedirect.com/science/article/pii/S1387181113005192

Zhang, J., Jiang, D., Peng, H., & Qin, F. (2013). Enhanced mechanical and electrical properties of carbon nanotube buckypaper by in situ cross-linking. Carbon. Retrieved from https://www.sciencedirect.com/science/article/pii/S000862231300568X
