W30S-LED

W30S-LED

Professional Grade Microscope, Binocular



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

W30S-LED

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Microscope to Camera Configurations chart
/ Download as PDF

  • Binocular
  • DIN-plan optics

Features

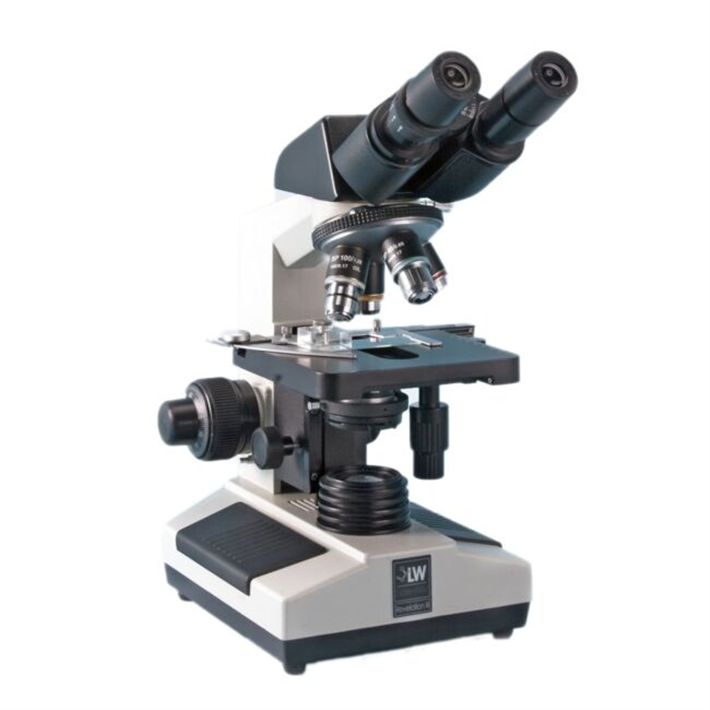

The W30S-LED professional-grade microscope is a best-seller in universities, medical schools, and reseach laboratories. Equipped for performance, its features include titanium-finished DIN or Semi-Plan optics and a 30-year anti-fungal coating. The W30S-LED is the choice for superior performance at a great price.

Specifications

HEAD

Binocular (Seidentopf)
Inclined 30°
Rotates 360°
Dual diopter adjustment
Interpupillary distance range 55-75 mm
10X/18 wide field eyepieces
Dual binocular

NOSEPIECE Quadruple forward-facing nosepiece
Multiple ball bearing mounted
OBJECTIVES

DIN Plan
30-year anti-fungal coating
4X, 10X, 40X, 100XR (oil)
Parfocal, parcentric, color-coded

  NA  Magnification  Field of View
0.10 4X 40X 4.5mm
10X 0.25 100X 1.8mm
40X 0.65 400X 0.45mm
100XR 1.25 1000X 0.18mm
STAGE Mechanical stage (140mm x 140mm)
Coaxial drive controls
XY Movement: 73mm x 43mm
Stage locking lever
Slow-close hydraulic slide finger
FOCUS Coarse adjustment: range of 30mm
Fine adjustment: graduation of 2µm
Tension control knob
ILLUMINATION Moveable Abbe condenser, NA 1.25, rack and pinion
Iris diaphragm
Variable LED light source (3W bulb)
110V/220V switchable electronics
ACCESSORIES INCLUDED Replacement 0.5 amp fuses
mirror attachment (for field use)
blue and green filters
dust cover
immersion oil
spare bulb
DIMENSIONS AND WEIGHT 15" (38 cm) x 9" (23 cm) x 7" (17.8 cm)  14 lb. (6.4kg)
