MM3

MM3

Miniature Micropositioner - Single Axis



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

MM3 MM3 Details

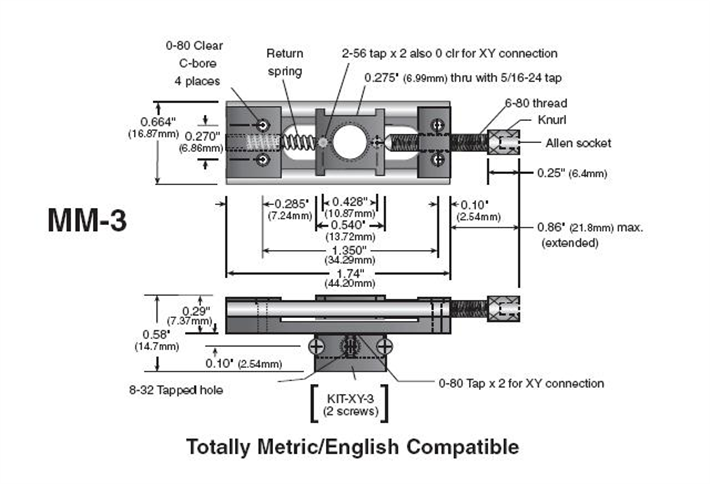

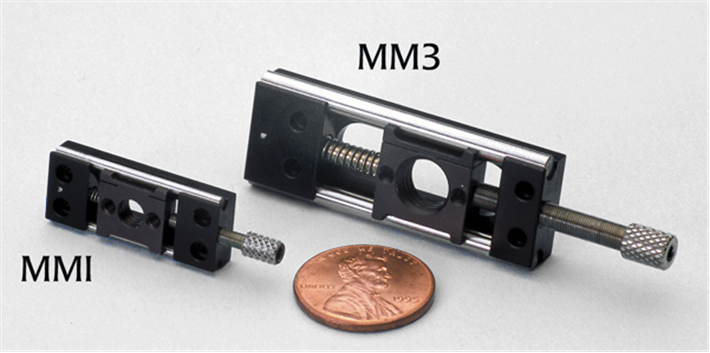

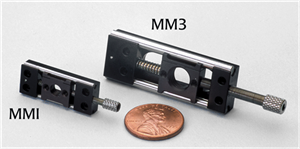

There are 2 images available to view - click to enlarge and scroll through the product gallery.

Manipulator Care
/ Download as PDF

  • 13 mm travel
  • Precise and smooth motion
  • Less than 1.5 micron maximum wobble

Features

Single stage measures only 7 x 17 x 44 mm with 13 mm travel. Offers precise and smooth motion with no backlash, positive spring-loaded carriage, straight within 1.5 microns, and less than 1.5 microns maximum wobble. Features fine 80 TPI screw adjustment. 13 mm square mounting surface has a 7 mm tapped center hole for transmission and/or mounting. Single X axis.

Specifications

Travel 0.5" (12.7mm)
Runout (maximum) 1.5μm
Reutrn Force ext.-comp. 6-20oz. (170-56g)
Weight 16g
Screw Pitch 80TPI
Backlash 0 (no ball bearings)
Sensitivity 0.5μm
Wobble (maximum) 0.01 lmrad
Thermal Stabilty 15°-75°C
Load Capacity
     Direct top or side load 0.34kg
     Push 1kg
     Retract ext-comp See return force as specified above
     Tilt 6 in-oz (420g-cm)
     Twist 3 in-oz (210g-cm)
Dimensions (not including lead screw extension) 17.4 x 0.66 x 0.29" (44.2 x 16.8 x 7.4mm)
