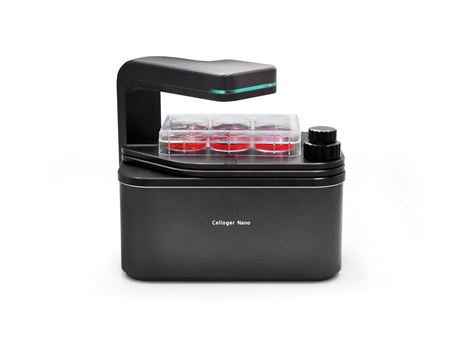

CELLOGER® NANO
Expand your cell-based research with Celloger® Nano, a benchtop digital microscope.
Celloger® Nano is a benchtop digital microscope equipped with a wireless connection, enabling you to check the state of your cells in real-time from any location within your laboratory. With all the necessary functions to check the cells, you can quickly assess the condition of your cells.
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 7 images available to view - click to enlarge and scroll through the product gallery.
Features
-
Quick cell check : Easy to carry and install in any lab setting for quick cell check
-
Suitable for tablet : Enables easy data transfer with a wireless connection using the tablet
-
Multiple vessel holders : Different kinds of vessels can be used such as cell culture slides, dishes, flasks, and more
-
User-friendly function : Equipped with functions to record preview images while streaming, and highly precise XYZ stage controllers
-
Real-time monitoring inside an incubator : No need to take the cell sample out of the incubator, eliminating contamination concerns
-
Time-lapse video : The Movie Maker function provides an easy, one-click way to make a time-lapse video
Benefits

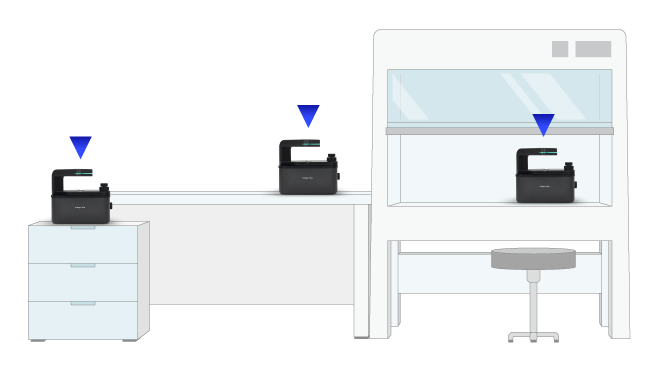

Quick cell check
-
Celloger® Nano is a system perfectly suitable for confirming the conditions of cells in various locations depending on the researcher's experimental needs. It enables quick and efficient inspection of cells, allowing researchers to rapidly identify potential issues in their samples.

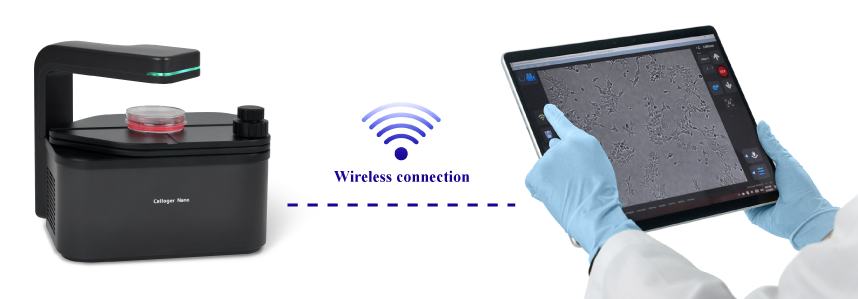

Suitable for tablet
-
The wireless connection enables easy data transfer, allowing you to check your cells without space constraints. It provides software optimized for laptops and tablets, ensuring a seamless user experience.
-
Celloger® Nano can be easily installed without a complicated connection process, saving you time.

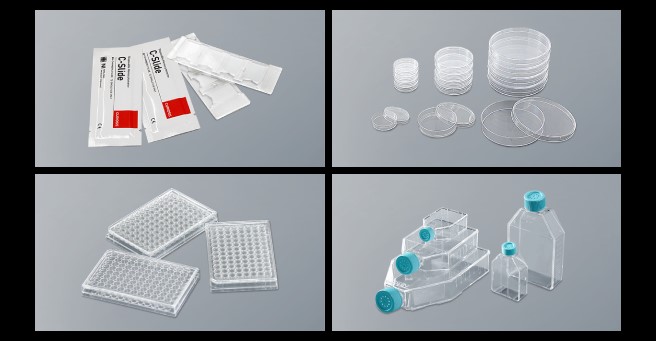

Multiple vessel types
-
Different kinds of vessels can be used in Celloger® Nano using its wide stage that gives enough space for large labware placement.

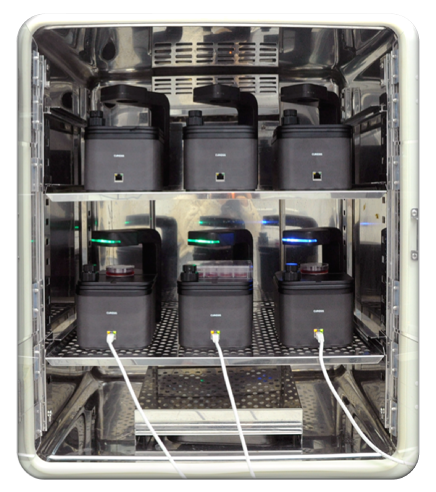

Fit into standard CO2 incubator
-
Celloger® Nano is a very compact system with a size almost equivalent to half of A4 paper. Compared to other products, several Celloger® Nano systems can fit into a standard CO2 incubator.
-
Maintaining the performance of a device working in a hot and humid environment is very challenging. With Celloger® Nano, it is equipped with a fan that minimizes risk factors such as preventing moisture from forming and making it easier for maintenance.
User-friendly functions

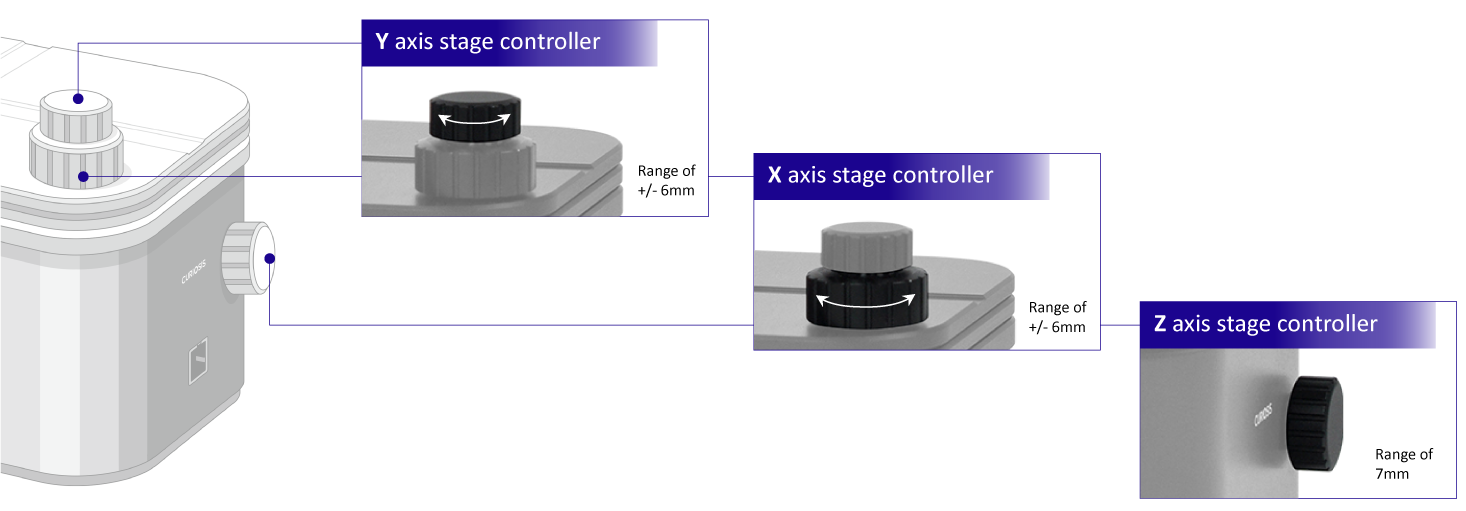

Precise stage controller

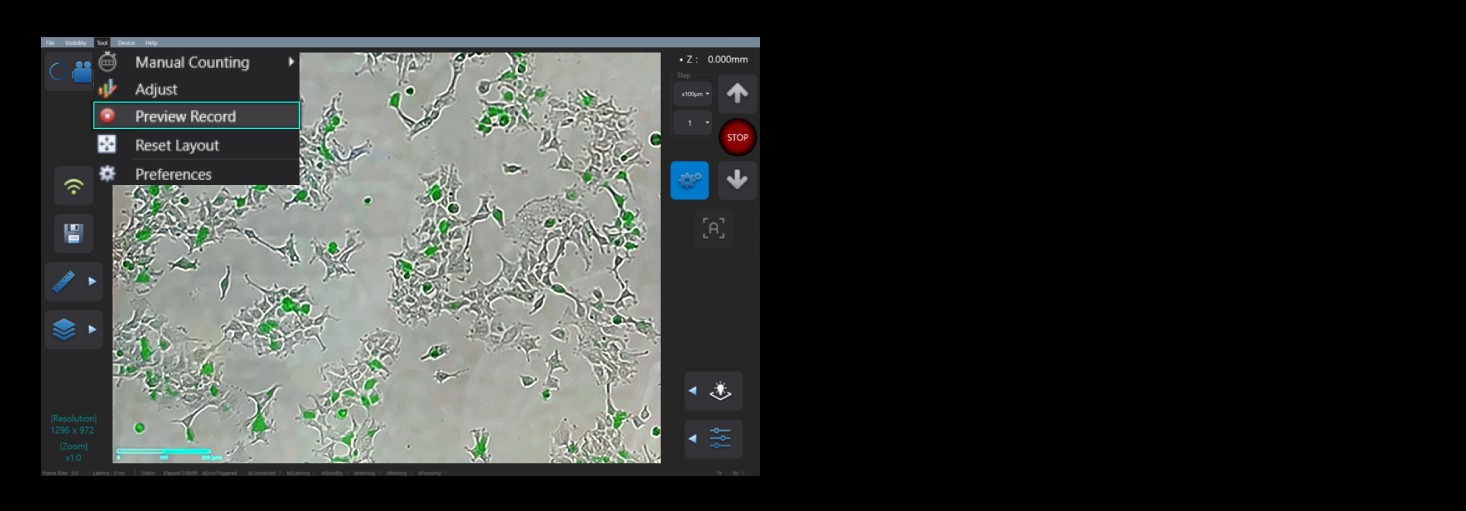

Preview record
Celloger® Nano, automated live cell imaging system from Curiosis
Application
Celloger® Nano I Apoptosis
Using fluorescence detection of activated caspase to examine the apoptosis of Hela cells caused by staurosporine.
Celloger® Nano I Cell morphology
Observe HeLa cells morphology in real-time every 5 minutes for 66 hours.
Celloger® Nano I Cell proliferation
Monitor cell proliferation of NIH 3T3 cells for 56 hours inside an incubator.
Celloger® Nano I Cytotoxicity
Dead cells were stained with green/red fluorescent dye to measure the cytotoxicity.
Celloger® Nano I Transfection
Expression of EGFP transfected with pCMV GFP plasmid.
Celloger® Nano I Wound healing assay
HeLa cells were incubated for 60 hours after the scratch and monitored every 1 hour.
Curiosis Celloger Webinar
Options
| Order code | Description |
| EVI-LCI-01-10 | Celloger® Nano, Bright Field, 2X Mag |
| EVI-LCI-01-11 | Celloger® Nano, Bright Field, 4X Mag |
| EVI-LCI-01-12 | Celloger® Nano, Bright Field, 10X Mag |
| EVI-LCI-01-13 | Celloger® Nano, Bright Field, Green Fluor 4X Mag |
| EVI-LCI-01-14 | Celloger® Nano, Bright Field, Green Fluor 10X Mag |
| EVI-LCI-01-15 | Celloger® Nano, Bright Field, Red Fluor 4X Mag |
| EVI-LCI-01-16 | Celloger® Nano, Bright Field, Red Fluor 10X Mag |
Specifications
| Type | Description |
| Dimension | 211 x 146 x 188 mm |
| Weight | 3.2kg / 7.0lb |
| Objective Lens | 2X / 4X / 10X |
| Imaging modes | Brightfield, Fluorescence (Green / Red) |
| Fluorescence | Green: Excitation (470/40x) / Emission(510lp)Red: Excitation (525/30x) / Emission (570lp) |
| Field of view | 2X (2.8x2.0 mm) / 4X (1.4 x 1.0 mm) / 10X (0.5 x 0.4 mm) |
| Camera | 1.25MP CMOS |
| Focus | Manual / Autofocusing |
| Imaging positions | Single |
| File export format | TIFF,AVI (JPEG, PNG) |
| Culture vessels | Flask, dish, well plate, slide |
