UMP3T-2

UMP3T-2

Two UltraMicroPump3 (UMP3) pump heads with SMARTouch Controller



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

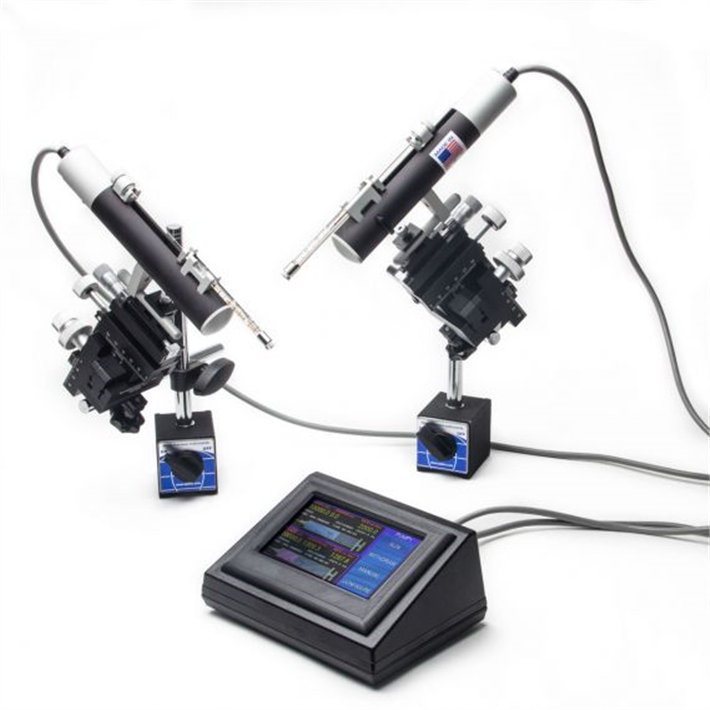

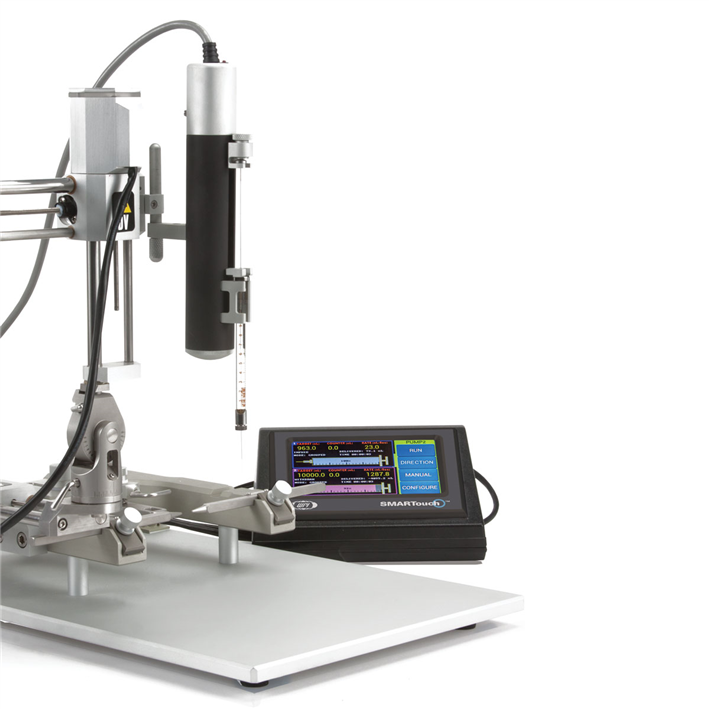

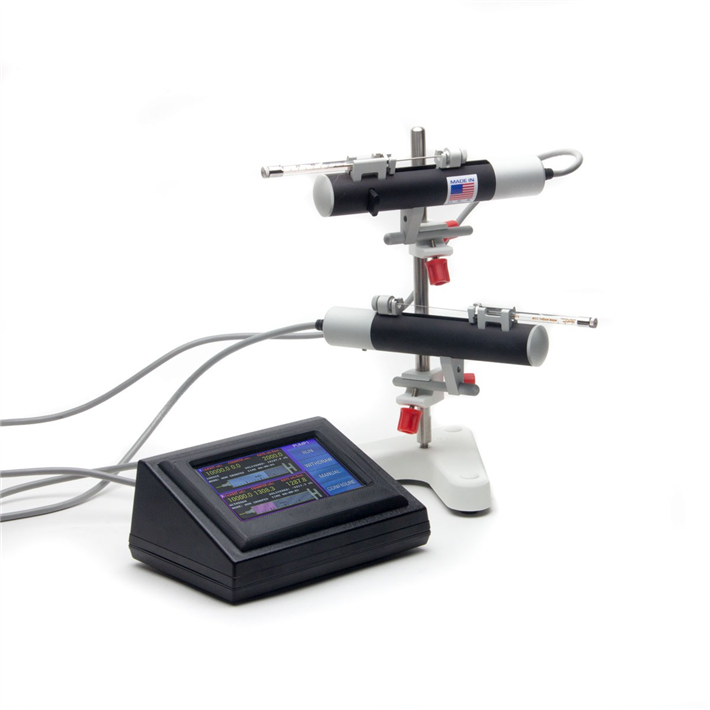

UMP3T-2 UMP3T-2 UMP3T-2 Mounted On Micromanipulators UMP3T Mounted On Stereotaxic Frame

There are 4 images available to view - click to enlarge and scroll through the product gallery.

UMP3 with MICRO2T Manual
/ Download as PDF

Quick Start Guide For UMP3 with MICRO2T
/ Download as PDF

  • Graphic display with SMARTouch™ touch screen controller for "intelligent", easy to use interface controlling up to two syringe pumps
  • Splash proof touch screen
  • User configurable mounting bar
  • Dual mode motor drive
  • Compatible with all UMP, UMP2 and UMP3 pumps
  • Optional foot switch available
  • 5 digit display

Benefits

  • Accepts a wide variety of microinjection syringes
  • Manual or automated injections
  • Quiet operation for electrophysiology recordings
  • Mounts directly on micromanipulator or stereotaxic frame
  • Nominal injections down to 1nL
  • Rapid setup with intuitive touchscreen controller

Applications

  • Microinjection
  • Neuroscience
  • Microfluidics
  • Micro delivery of biochemical agents or dyes

The UltraMicroPump3 (UMP3) is a versatile pump which uses micro syringes to deliver picoliter to milliliter volumes. The pump is optimum for applications that require injections of precise and small amounts of liquid. With its touchscreen controller, UMP3 can displace as little as 0.53 µL/step (using 10 µL syringe with 60 mm scale length).

Patent Pending technology

The new SMARTouch™ controller for the UltraMicroPump3 features Patent Pending technology which includes:

  • Total system calibration – Calibrate the syringe and the controller together as a system. This feature eliminates the variability of the syringes and delivers the calibrated volume.
  • Smart smoothness – The controller can be set to automatically adjust microstepping according to the injection rate to deliver the smoothest flow.
  • User defined travel limits – Set the limits for a specific syringe in the software. This prevents the pump from over-driving the plunger into the syringe, potentially causing syringe breakage.

The MICRO2T SMARTouch™ controller is feature rich. All operations are controlled through interactive touch screen. It has a graphical indication of the flow and the volume remaining in the syringe. It offers end stop detection that is dependent on the syringe volume. You can control two pumps independently from one controller with its dual display. It also has automatic pump detection and a Pause/Resume feature that allows dosing during infusion/withdrawal. The volume accumulated is displayed on screen, as well as the percentage of volume left in the syringe. The SMARTouch™ controller is fully compatible with all earlier versions of the UltraMicroPump.

Low Fluid Dead Volume

Syringes may be filled externally and then inserted into the pump or filled while mounted in the pump. Fluids injected or withdrawn are held entirely within the micro syringe to maintain a low fluid dead volume.

Flexibility in Mounting

For positioning, the UMP3 may be attached to any of several WPI micropositioners such as the M3301 (manual), DC3001 (motorized) or any manual stereotaxic manipulator.

Rapid Setup with Intuitive Touchscreen Controller

An Integral component in the UMP3 system is the SMARTouch™ touchscreen controller, which provides an “intelligent” and easy-to-use interface up to two syringe pumps. Operating parameters are set with the touchscreen panel. An optional footswitch offers “hands free” start/stop operation.

Computer Control—A USB port on the rear of the controller can be used to connect it to a computer for scripted protocols.

NOTE: UMP3 accepts glass syringes with barrel diameters from 5.5 to 9 mm.

Specifications

Ultramicropump specifications

(based on 10 μL syringe)

Normal Mode

Travel

62 mm

Minimum dispensing volume

0.58 nL / step (10 µL syringe)

Linear motion per step

3.175 µm/half step

Weight

325 g (11.5 oz)

Mounting rod diameters

7.9 mm (0.31 in.)

Mains power supply

90-264VAC @ 47-63Hz

Dimensions

∅ 32 mm x 190 mm

(∅ 1.3 in. x 7.5 in.)



Microstepping Mode

Precision is increased eight-fold.
